JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-JIS34KC-R800-100

MOQ : 1

Price : $9,192.65-10,446.19

Power supply : 220V 50Hz

Material : SUS 304 Stainless Steel

Weight : 250kg

External size : 1750mm*1850mm*2490mm (L*D*H)

Turntable diameter : 600mm

Turntable load : 50KG

Turntable speed : 1-5r/min

Testing time : 0-999 min

Nozzle diameter : 0.4mm (IPX3/4); 0.8mm (IPX4K)

Nozzle distance : 50 mm

Swivel tube speed : 60 degree/s

Swing pipe angle : IPX3: 120º; IPX4: 350º

Water flow rate : IPX3: 2.3L/min; IPX4: 3.5L/min; IPX4K: 30.0L/min

Spray nozzle dimension : Φ1.2mm (S1/S2)

Flow pipe length : Approx 500mm

Contact Now

Product Description

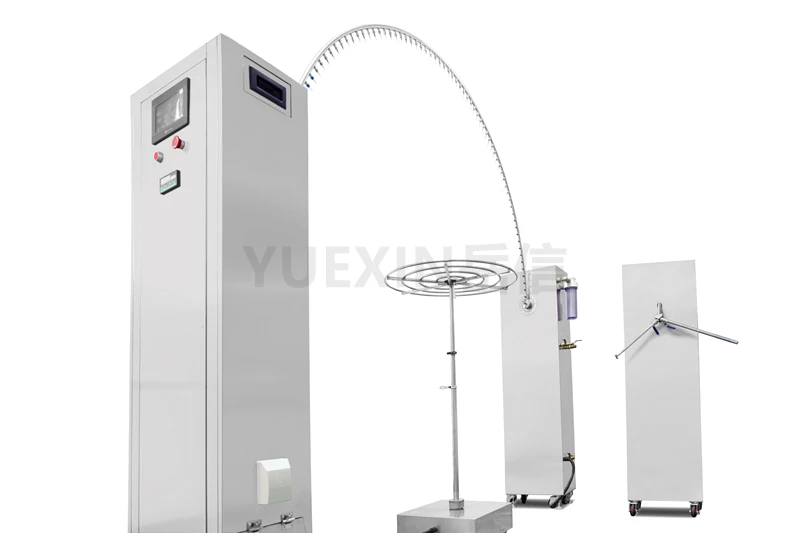

JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
Specification
Equipment function:
The main function of this device is to test the physical and other related performance of electronic and electrical products, lamps, cabinets, electrical components, cars, motorcycles, and their components under simulated weather conditions such as rain, splashing, and water spraying. After testing, the performance of the product is determined through verification to determine whether it meets the requirements, in order to facilitate product design, improvement, verification, and factory inspection.
Model
YX-JIS34KC-R800
External Size
1750mm*1850mm*2490mm (L*D*H)
Diameter of turntable
600mm
Max load of turntable
50KG
8Turntable lift height
650-1200 mm
Speed of turntable
1 -5r/min(accurate adjustment)
Turntable rotation mode
Continuous forward rotation/alternating forward and reverse rotation/intermittent rotation
Method of flow volume adjustment
Using a flow meter with an adjustment panel to manually adjust the flow rate
Testing time
0-999 min
Machine weight
about 200kg
Technical Parameter of IPX3/4/4K
Radius of swivel tube
R800mm
Internal diameter of nozzle
0.4mm(IPX3/4);0.8mm(IPX4K)
Distance between nozzles(S1/S2)
50 mm
Internal diameter of swivel tube
15mm
Speed of rotation of the swivel tube
60 degree/s
Swing pipe angle
IPX3:120º; IPX4:350º
Water volume flow
IPX3:2.3L/min ;IPX4:3.5L/min;IPX4K:30.0L/min
Technical Parameter of JIS R1/R2/S1/S2
dimension of spray nozzle(S1/S2)
Φ1.2mm
Length of flow pipe(S1/S2)
Approx 500mm
Dimension of spray nozzle
12.5mm
Number of nozzles
2(R1/R2);40(S1/S2)
Water pressure at rain or spray nozzle (gauge pressure)
R1:0.01MPa;R2:0.03MPa
S1:0.1MPa;S2:0.3MPa
Water volume flow(minimum)
1.9±5% L/min(R1);3.2±5% L/min(R2)
24.5±5% L/min(S1);39.2±5% L/min(S2)
Speed of flow pipe
1-23R/min
Company Profile
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.
We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.
We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.
We have a excellent after-sales service team that can respond and provide solutions quickly.
We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.
We have been granted 25 patents and passed the Quality management system:ISO9001.
We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.
The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.
Warmly welcome you to visit our factory!
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
JIS D 0203 Standard R1/R2/S1/S2 Spray Test Chamber with SUS 304 Stainless Steel Walk-in Rain Simulation Chamber
FAQ
1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?
Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.
If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.


2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English.
Other languages can be customized according to the needs of users.
